Physical Characteristics of Tsunamis

Physical Characteristics of Tsunamis

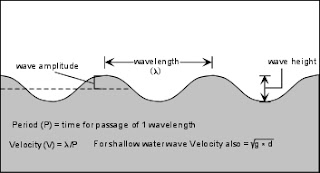

All types of waves, including tsunamis, have a wavelength, a wave height, an amplitude, a frequency or period, and a velocity.

Wavelength is defined as the distance between two identical points on a wave (i.e. between wave crests or wave troughs). Normal ocean waves have wavelengths of about 100 meters. Tsunamis have much longer wavelengths, usually measured in kilometers and up to 200 kilometers

* Wave height refers to the distance between the trough of the wave and the crest or peak of the wave.
* Wave amplitude- refers to the height of the wave above the still water line, usually this is equal to 1/2 the wave height. Tsunamis can have variable wave height and amplitude that depends on water depth as we shall see in a moment
* Wave frequency or period - is the amount of time it takes for one full wavelength to pass a stationary point.
* Wave velocity is the speed of the wave. Velocities of normal ocean waves are about 90 km/hr while tsunamis have velocities up to 950 km/hr (about as fast as jet airplanes), and thus move much more rapidly across ocean basins. The velocity of any wave is equal to the wavelength divided by the wave period.

V = l/P

Tsunamis are characterized as shallow-water waves. These are different from the waves most of us have observed on a the beach, which are caused by the wind blowing across the ocean's surface. Wind-generated waves usually have period (time between two successive waves) of five to twenty seconds and a wavelength of 100 to 200 meters. A tsunami can have a period in the range of ten minutes to two hours and wavelengths greater than 500 km. A wave is characterized as a shallow-water wave when the ratio of the water depth and wavelength is very small. The velocity of a shallow-water wave is also equal to the square root of the product of the
acceleration of gravity, g, (980cm/sec/sec) and the depth of the water, d.

V=Ög * d

The rate at which a wave loses its energy is inversely related to its wavelength. Since a tsunami has a very large wavelength, it will lose little energy as it propagates. Thus, in very deep water, a tsunami will travel at high speeds with little loss of energy. For example, when the ocean is 6100 m deep, a tsunami will travel about 890 km/hr, and thus can travel across the Pacific Ocean in less than one day.

As a tsunami leaves the deep water of the open sea and arrives at the shallow waters near the coast, it undergoes a transformation. Since the velocity of the tsunami is also related to the water depth, as the depth of the water decreases, the velocity of the tsunami decreases. The change of total energy of the tsunami, however, remains constant

Furthermore, the period of the wave remains the same, and thus more water is forced between the wave crests causing the height of the wave to increase.
Because of this "shoaling" effect, a tsunami that was imperceptible in deep water may grow to have wave heights of several meters or more.
If the trough of the tsunami wave reaches the coast first, this causes a phenomenon called drawdown, where it appears that sea level has dropped considerably.
Drawdown is followed immediately by the crest of the wave which can catch people observing the drawdown off guard. When the crest of the wave hits, sea level rises (called run-up ).
Run-up is usually expressed in meters above normal high tide.

Run-ups from the same tsunami can be variable because of the influence of the shapes of coastlines. One coastal area may see no damaging wave activity while in another area
destructive waves can be large and violent. The flooding of an area can extend inland by 300 m or more, covering large areas of land with water and debris. Flooding tsunami waves tend to carry loose objects and people out to sea when they retreat.

Tsunamis may reach a maximum vertical height onshore above sea level, called a run-up height, of 30 meters. A notable exception is the landslide generated tsunami in Lituya Bay, Alaska in 1958 which produced a 60 meter high wave because the wavelengths and velocities of tsunamis are so large, the period of such waves is also large, and larger than normal ocean waves. Thus it may take several hours for successive crests to reach the shore. (For a tsunami with a wavelength of 200 km traveling at 750 km/hr, the wave period is about 16 minutes). Thus people are not safe after the passage of the first large wave, but must wait several hours for all waves to pass. The first wave may not be the largest in the series of waves. For example, in several different recent tsunamis the first, third, and fifth waves were the largest.
How Tsunamis Are Formed.

What is a Tsunami?

What is a Tsunami?

What does "tsunami" mean?

Tsunami is a Japanese word with the English translation, "harbor wave." Represented by two characters, the top character, "tsu," means harbor, while the bottom character, "nami," means "wave." In the past, tsunamis were sometimes referred to as "tidal waves" by the general public, and as "seismic sea waves" by the scientific community. The term "tidal wave" is a misnomer; although a tsunami's impact upon a coastline is dependent upon the tidal level at the time a tsunami strikes, tsunamis are unrelated to the tides. Tides result from the imbalanced, extraterrestrial, gravitational influences of the moon, sun, and planets. The term "seismic sea wave" is also misleading. "Seismic" implies an earthquake-related generation mechanism, but a tsunami can also be caused by a nonseismic event, such as a landslide or meteorite impact.

A tsunami is a very long-wavelength wave of water that is generated by sudden displacement of the seafloor or disruption of any body of standing water. Tsunamis are sometimes called "seismic sea waves", although, as we will see, they can be generated by other mechanisms than
earthquakes. Tsunamis have also been called "tidal waves", but this term should not be used because they are not in any way related to the tides of the Earth. Because tsunamis occur suddenly, often without warning, they are extremely dangerous to coastal communities. How are tsunamis formed....

Life of a Tsunami

Life of a Tsunami

How are tsunamis formed...
Image of Tsunami Generation
Panel 1—Initiation: Earthquakes are commonly associated with ground shaking that is a result of elastic waves traveling through the solid earth.
However, near the source of submarine earthquakes, the seafloor is "permanently" uplifted and down-dropped, pushing the entire water column up and down. The potential energy that results from pushing water above mean sea level is then transferred to horizontal propagation of the tsunami wave (kinetic energy). For the case shown above, the earthquake rupture occurred at the base of the continental slope in relatively deep water. Situations can also arise where the earthquake rupture occurs beneath the continental shelf in much shallower water.

Note: In the figure, the waves are greatly exaggerated compared to water depth. In the open ocean, the waves are at most several meters high spread over many tens to hundreds of
kilometers in length.

Image of Tsunami Wave Split
Panel 2—Split: Within several minutes of the earthquake, the initial tsunami (Panel 1) is split into a tsunami that travels out to the deep ocean (distant tsunami) and another tsunami that travels towards the nearby coast (local tsunami). The height above mean sea level of the two
oppositely traveling tsunamis is approximately half that of the original tsunami (Panel 1). (This is somewhat modified in three dimensions, but the same idea holds.) The speed at which both tsunamis travel varies as the square root of the water depth. Therefore, the deep-ocean tsunami travels faster than the local tsunami near shore.

Panel 3—Amplification: Several things happen as the local tsunami travels over the continental slope. Most obvious is that the amplitude increases. In addition, the wavelength decreases. This results in steepening of the leading wave--an important control of wave runup at the coast (next panel).
Note that the first part of the wave reaching the local shore is a trough, which will appear as the sea receeding far from shore. This is a common natural warning sign for tsunamis.
Note also that the deep ocean tsunami has traveled much farther than the local tsunami because of the higher propagation speed. As the deep ocean tsunami approaches a distant shore, amplification and shortening of the wave will occur, just as with the local tsunami shown above.

Image of Tsunami Runup
Panel 4—Runup: Tsunami runup occurs when a peak in the tsunami wave travels from the near-shore region onto shore. Runup is a measurement of the height of the water onshore
observed above a reference sea level.
Except for the largest tsunamis, such as the 2004 Indian Ocean event, most tsunamis do not result in giant breaking waves (like normal surf waves at the beach that curl over as they approach shore). Rather, they come in much like very strong and fast-moving tides (i.e., strong surges and rapid changes in sea level). Much of the damage inflicted by tsunamis is caused by strong currents and floating debris.

The small number of tsunamis that do break often form vertical walls of turbulent water called bores. Tsunamis will often travel much farther inland than normal waves.
Do tsunamis stop once on land? No! After runup, part of the tsunami energy is reflected back to the open ocean and scattered by sharp variations in the coastline. In addition, a tsunami can generate a particular type of coastal trapped wave called edge waves that travel back-and forth, parallel to shore. These effects result in many arrivals of the tsunami at a particular point on the coast rather than a single wave as suggested by Panel 3. Because of the complicated behavior of tsunami waves near the coast, the

first runup of a tsunami is often not the largest,
emphasizing the importance of not returning to a beach many hours after a tsunami first hits. How are tsunamis formed..



A tsunami is a series of waves, made in an ocean, sea or other body of water by an earthquake, landslide, volcanic eruption, or meteorite impact. Tsunamis can cause huge destruction when they hit coastlines. Some people call tsunamis “tidal waves”, but these large waves really have little to do with tides, so the term “tidal wave” does not really suit them.

Tsunami waves are different from the waves you can usually find rolling into the coast of a lake or ocean. Those waves are made by wind offshore and are quite small compared with tsunami waves. A tsunami wave in the open ocean can be more than 100 km across. That’s roughly the length of 1000 American football fields! Tsunami waves are huge and can travel very quickly, at about 700 km/hr, but they are only about one meter high in the open ocean.

As a tsunami wave travels into the shallower water near the coast, it slows and grows in height. Even though a tsunami may be barely visible at sea, it may grow to be many meters high near the coast and have a tremendous amount of energy.
When it finally reaches the coast, a tsunami may appear as a rapidly rising or falling tide or a series of waves with a maximum height of up to between 25-30 meters.
A few minutes before a tsunami wave hits, the water near shore may move away, exposing the ocean floor. Often the first wave may not be the largest, and additional waves may arrive at the coast every 10 to 60 minutes. They move much faster than a person can run. The danger from a tsunami can last for several hours after the arrival of the first wave.

Unlike other waves, tsunami waves typically do not curl and break. Coasts affected by a tsunami will be severely eroded. A tsunami can cause flooding hundreds of meters inland. The water moves with such force that it is capable of crushing homes and other buildings.
How Are Tsunamis Formed....

How Are Tsunamis Formed


A tsunami is a series of waves generated in an ocean or other body of water by a disturbance such as an earthquake, landslide, volcanic eruption, or meteorite impact. The picture at the left shows how an earthquake can generate a tsunami in the overlying water.

Undersea earthquakes, which typically occur at boundaries between Earth’s tectonic plates, cause the water above to be moved up or down. Tsunami waves are formed as the displaced
water, which acts under the influence of gravity, attempts to find a stable position again.

Undersea landslides
, which can be caused by large earthquakes, can also cause tsunami waves to form as water attempts to find a stable position.

Undersea volcano eruptions can create enough force to uplift the water column and generate a tsunami.
Asteroid impacts disturb the water from above, as momentum from falling debris is transferred to the water into which the debris falls.
How Are Tsunamis Formed...


How Tsunamis Are Formed..
Tsunamis can be generated when the sea floor abruptly deforms and vertically displaces the overlying water. Tectonic earthquakes are a particular kind of earthquake that are associated with the earth's crustal deformation; when these earthquakes occur beneath the sea, the water above tCauses of tsunamishe deformed area is displaced from its equilibrium position. Waves are formed as the displaced water mass, which acts under the influence of gravity, attempts to regain its equilibrium. When large areas of the sea floor elevate or subside, a tsunami can be created.

Large vertical movements of the earth's crust can occur at plate boundaries. Plates interact along these boundaries called faults. Around the margins of the Pacific Ocean, for example, denser oceanic plates slip under continental plates in a process known as subduction. Subduction earthquakes are particularly effective in generating tsunamis.

A tsunami can be generated by any disturbance that displaces a large water mass from its equilibrium position. In the case of earthquake-generated tsunamis, the water column is disturbed by the uplift or subsidence of the sea floor. Submarine landslides, which often accompany large earthquakes, as well as collapses of volcanic edifices, can also disturb the overlying water column as sediment and rock slump downslope and are redistributed across the sea floor. Similarly, a violent submarine volcanic eruption can create an impulsive force that uplifts the water column and generates a tsunami. Conversely, supermarine landslides and cosmic-body impacts disturb the water from above, as momentum from falling debris is transferred to the water into which the debris falls. Generally speaking, tsunamis generated from these mechanisms, unlike the Pacific-wide tsunamis caused by some earthquakes, dissipate quickly and rarely affect coastlines distant from the source area.
How Tsunamis are formed...
